- General Information
- Manufacturer
- Antec, Inc
- Manufacturer Website Address
- http://www.antec.com/us/
- Brand Name
- Antec
- Product Type
- Gaming Computer Case

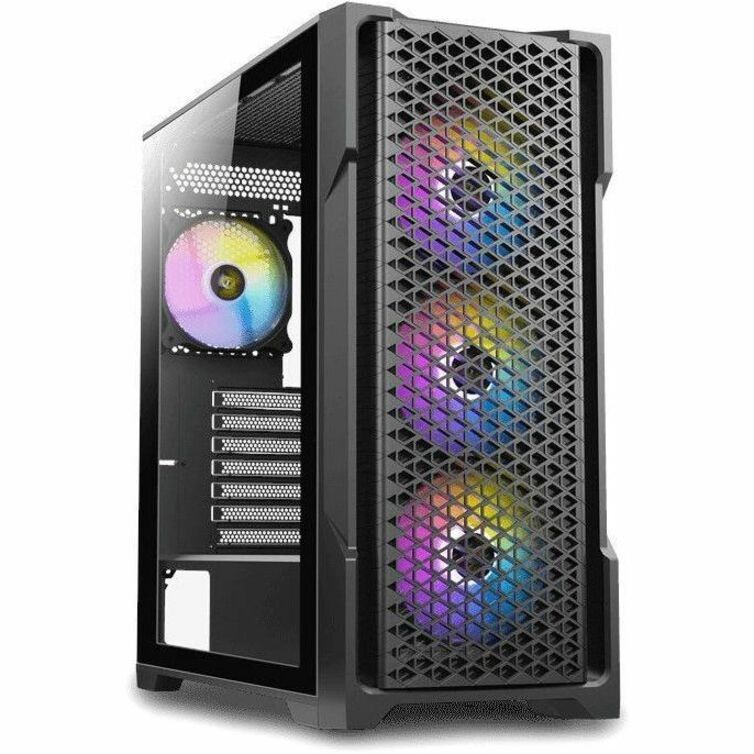

Unique Design & Powerful Heat Dissipation
The AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.

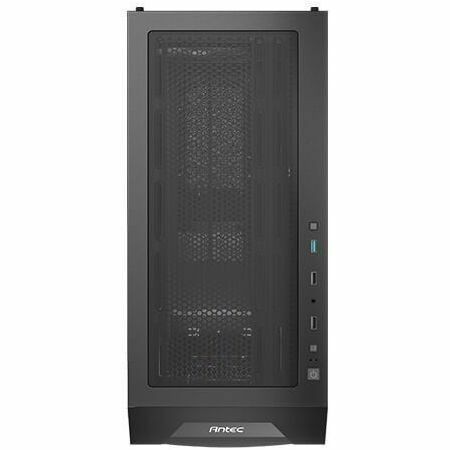

Diamond-Shaped Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.
Maximum Cooling Potential
The spacious interior can accommodate both front and upper radiators up to 360mm.
Powerful Cooling
Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.
High-Airflow Mesh Front Panel
Enlarged mesh front panel provides massive airflow.
Pre-Installed 4 x 120mm Fans
Pull in massive air for cooling.
In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
Neat Build within Reach
23mm space for cable management ensures your PC build looks neat.

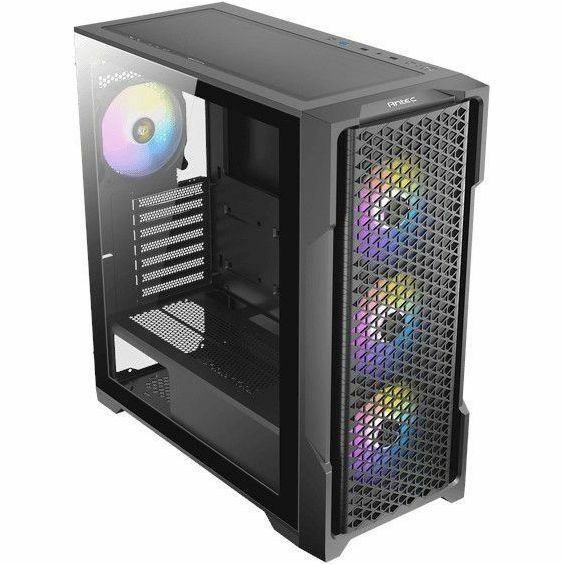

Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Motherboard Supported
- ATX
- Micro ATX
- ITX
- Number of Fans Supported
- 5
- Number of Fans Installed
- 4
- Fan Size Supported
- 4.72"
- 5.51"
- Installed Fan Size
- 4.72"
- Installed Fan Size Details
- 4 x 120mm
- Features
- Dust Filter
- ARGB Control Button
- Cable Management
- On/Off Button
- Reset Button
- LED Button
- Window Panel
- Yes
- Bays
- Number of Internal 2.5" Bays
- 2
- Number of Internal 2.5"/3.5" Bays
- 3
- I/O Expansions
- Total Number of Expansion Slots
- 7
- Interfaces/Ports
- Total Number of USB Ports
- 3
- USB Port Details
- 2 x USB 2.0
- 1 x USB 3.0
- Front USB
- Yes
- Total Number of Audio In Ports
- 1
- Front Audio In
- Yes
- Total Number of Audio Out Ports
- 1
- Front Audio Out
- Yes
- Microphone
- Yes
- Physical Characteristics
- Product Material
- Plastic
- Tempered Glass
- Steel
- Cooler Type
- Fan/Liquid Cooler
- Form Factor
- Mid-tower
- Maximum CPU Cooler Height
- 6.30"
- Maximum PSU Length
- 16.14"
- Maximum GPU Length
- 15.16"
- Height
- 19.1"
- Width
- 8.3"
- Depth
- 18.6"
- Weight (Approximate)
- 14.93 lb
