- General Information
- Manufacturer
- GIGABYTE Technology, Inc
- Manufacturer Website Address
- http://www.gigabyte.us
- Brand Name
- GIGABYTE
- Product Type
- Gaming Desktop Motherboard
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
ADVANCED THERMAL SOLUTION
Z690 UD AX DDR4 uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
NEXT GENERATION CONNECTIVITY
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
- Warranty
- Limited Warranty
- 3 Year
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z690
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 12th Gen
- Processor Supported
- Celeron
- Core i3
- Core i5
- Core i7
- Core i9
- Pentium Gold
- Multi GPU Supported
- CrossFire
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 5333 MHz
- 5133 MHz
- 5000 MHz
- 4933 MHz
- 4800 MHz
- 4700 MHz
- 4600 MHz
- 4500 MHz
- 4400 MHz
- 4300 MHz
- 4266 MHz
- 4133 MHz
- 4000 MHz
- 3866 MHz
- 3800 MHz
- 3733 MHz
- 3666 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 3300 MHz
- 3200 MHz
- 3000 MHz
- 2933 MHz
- 2800 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- Intel Optane Memory Ready
- Yes
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- I/O Expansions
- Total Number of Expansion Slots
- 5
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 10
- Number of USB 2.0 Ports
- 4
- Number of USB 3.2 Gen 1 Ports
- 4
- Number of USB 3.2 Gen 2 Type-A Ports
- 1
- S/PDIF
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Number of M.2 Interfaces
- 3
- Total Number of Onboard USB Ports
- 8
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 2
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"
- Miscellaneous
- Package Contents

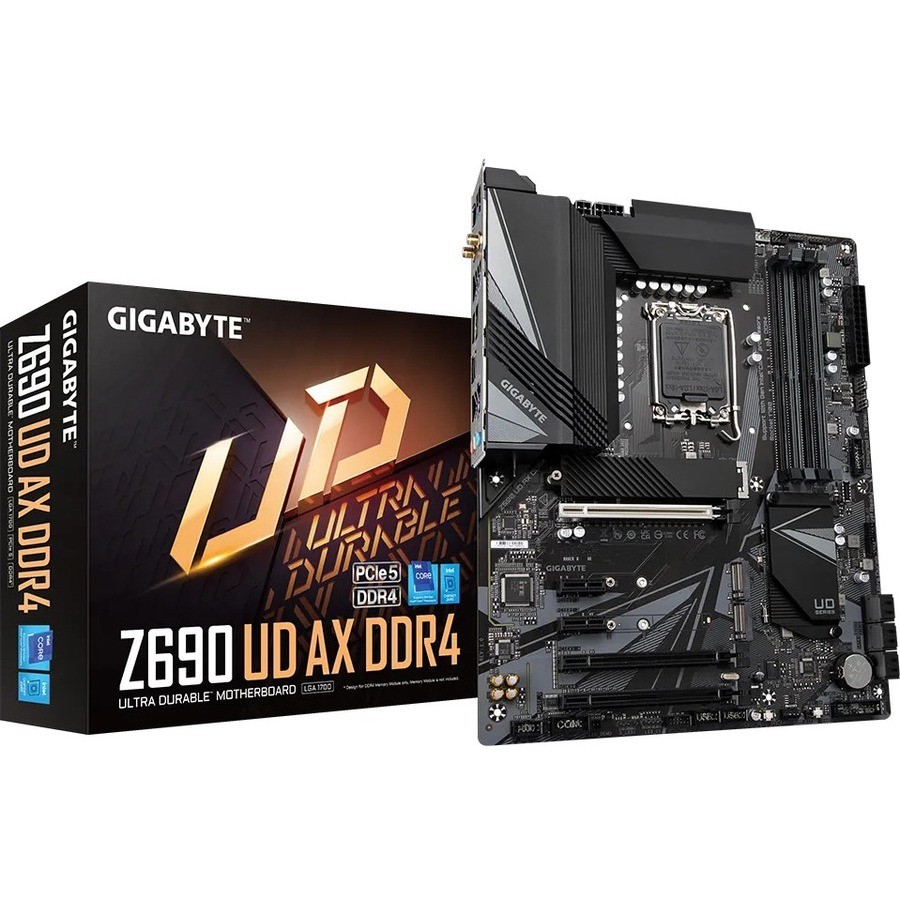

- Z690 UD AX DDR4 (Rev 1.0) Gaming Desktop Motherboard
- Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® Gaming LAN Bandwidth Control Utility
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Energy Efficiency Compliance
- Energy-related Products Directive Ready (ErP Ready)
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
